4 Easy Mods To Improve Reloading-Die Performance

by
posted on June 19, 2019

Here are four no-cost setup tricks that will improve the concentricity of your loaded ammo.

Cartridge cases and reloading dies all have centers. The trick is getting the centers to agree. When they do, then that’s an asset to “concentricity,” and that’s attaining a major goal in the process of producing better ammunition. Circles within circles, all sharing the same center: case head, case body and case neck. Ultimately, it’s also the rifle chamber, rifle bore and bullet, and the idea is to get the bullet tip in a loaded round looking straight down the center of the barrel.

Forster Bench Rest seating die
Investing in an upgraded seating die like this Forster Bench Rest eliminates worry over alignment.


All that starts on the loading bench.

Think about a part that’s under pressure and moveable—such as a cartridge case being sized or a bullet being seated, that moves toward a path of least resistance. If all of the associated tooling is “straight,” and the case itself is uniform (wall thicknesses primarily), then the result is going to be resoudingly “straight.”

Given that tolerance gaps and misalignments exist, taking steps to help contrary centers come closer together comes from providing some free-play in the apparatus. I call it “free-floating.” Free-floating can help in two ways. One is to build-in float within the tool, and another is to create float and then use that to better center a tool. Let me explain.

1.
Shellholder. Reloading presses with conventional shellholder arrangements use a spring clip to retain the shellholder in its slot. Remove it. It cocks the shellholder at an angle.

Shellholder slot
Get the spring clip gone from the press ram shellholder slot. Replace it with an O-ring. Now it sits flat and is free to self-center.


Now get to a (real) hardware store and get an O-ring. The O-ring goes around and into the slot previously occupied by the clip. To install the shellholder just roll the ring down, slide in the holder and the O-ring will pop back up to block the shellholder’s exit. Normally, the right size is 7/8 inch outside diameter, 11/16 inside diameter and 3/32 thickness.

With the clip gone, the shellholder sits flat, as it should, and since the shellholder is free to move it also allows some “wiggle room” so the cartridge case can center itself in the die as it enters the die. This honestly makes a positive difference, especially it seems in bullet seating.

Note: For these next “tricks,” choose a case that represents your “best,” one that has the most consistent neck wall thickness.

2. Sizing Die Lock Ring. Speaking of “wiggle room,” there’s a tad amount too much of that in a 7/8-14 thread. That’s pretty coarse. Taking up the play created by thread-to-thread gaps results in “straighter” die installation.

Forster lock rings
I prefer clamping lock rings, like these from Forster. Those with a set screw can cock when the screw tightens in against the angled threads.


Always secure a die-body locking ring when there is a case inside the die, and with the press ram in its fully upward position (press handle all the way down). This little bit of pressure helps bring the die into better alignment with the ram. It also makes the die very difficult to remove after snugging down the lock ring. Just get stout on it, and, after initial removal, subsequent re-fittings are easy. I use a “strap wrench” (plumbing supply and auto parts stores will have one). “Channel-Lock” pliers also work, but result in cosmetic, though not real, damage. Lock rings with wrench-flats are the bomb.

And before removing the die after the snug-up step, make an indexing mark that runs from the die body to the die lock ring to the press top. That’s a simple way to return to “zero,” and also to know if anything got out of kilter. I like to use a paint marker.

3.
Sizing Button (expander) / decapping assembly. This is the next step after the “lock-ring step.” To get the sizing button in a sizing die aligned on center, start with the sizing die threaded into the press. Then, loosen the decapping-stem lock nut and run a case fully up (press handle fully down).

Decapping stem
When it’s possible, and it almost always is, secure the pieces-parts when they’re doing their jobs. This helps bring, for instance, the decapping stem into straight alignment, and the sizing button along with it.


Next, slowly retract the handle back upward until you feel the sizing button enter and lodge inside the case neck. Now, put just a little pressure back in the “up” direction (push gently down on the press handle) and then tighten the decapping-stem lock ring.

This really makes a difference, by my notes. And the little directional change is key.

4. Bullet Seater. Follow the same die-body-lock-ring trick I’ve gone on about, after a bullet has been seated (and also add the index mark). Now, there’s another that may or may not matter, depending on the engineering of your sizing die.

The spring-loaded “sleeve”-type seaters (like the Redding Competition or Forster Benchrest) are already in alignment by the way they’re built, so the seating stem itself can’t be influenced. The die body though can get some help from the lock-ring trick.

Seating bullets

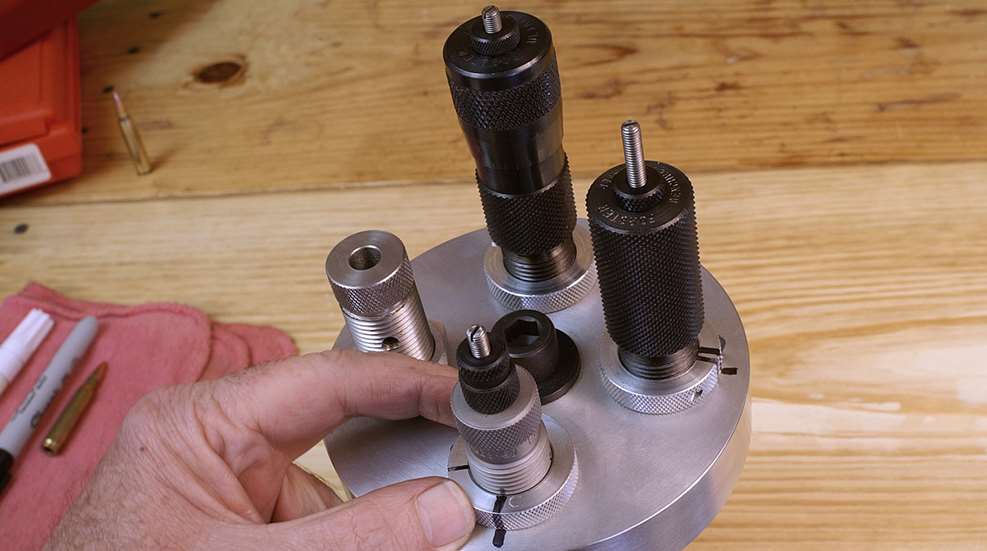

Always put an index mark from (any) die body to lock ring to press top. That’s a simple way to verify return to “zero” when a die is installed back into your press.


If, however, yours is the style where the bullet-seating plug is holding rigidly down inside the seating die much in the same as the expander in a sizing die, that same sort of process as described for centering an expander can work wonders. Loosen the seating stem lock ring, seat a bullet and keep the press handle down while you lock the seating-stem.

Although they’re more expensive, investing in a sleeve-style seating die will certainly help the quality of your loaded rounds. The reason for the sleeve is that   it accepts the full length of the case prior to running it up fully to take the bullet. Thus, the case is fully supported against any movement that might get a bullet started off-line.

Here are a few bonus pointers for blissful tooling and process improvements.

Check the bullet seating-stem depth. This is not nearly as much issue now as it once was, but do make sure that the point of the longest bullet you use is not bottoming out inside the seating-stem plug.

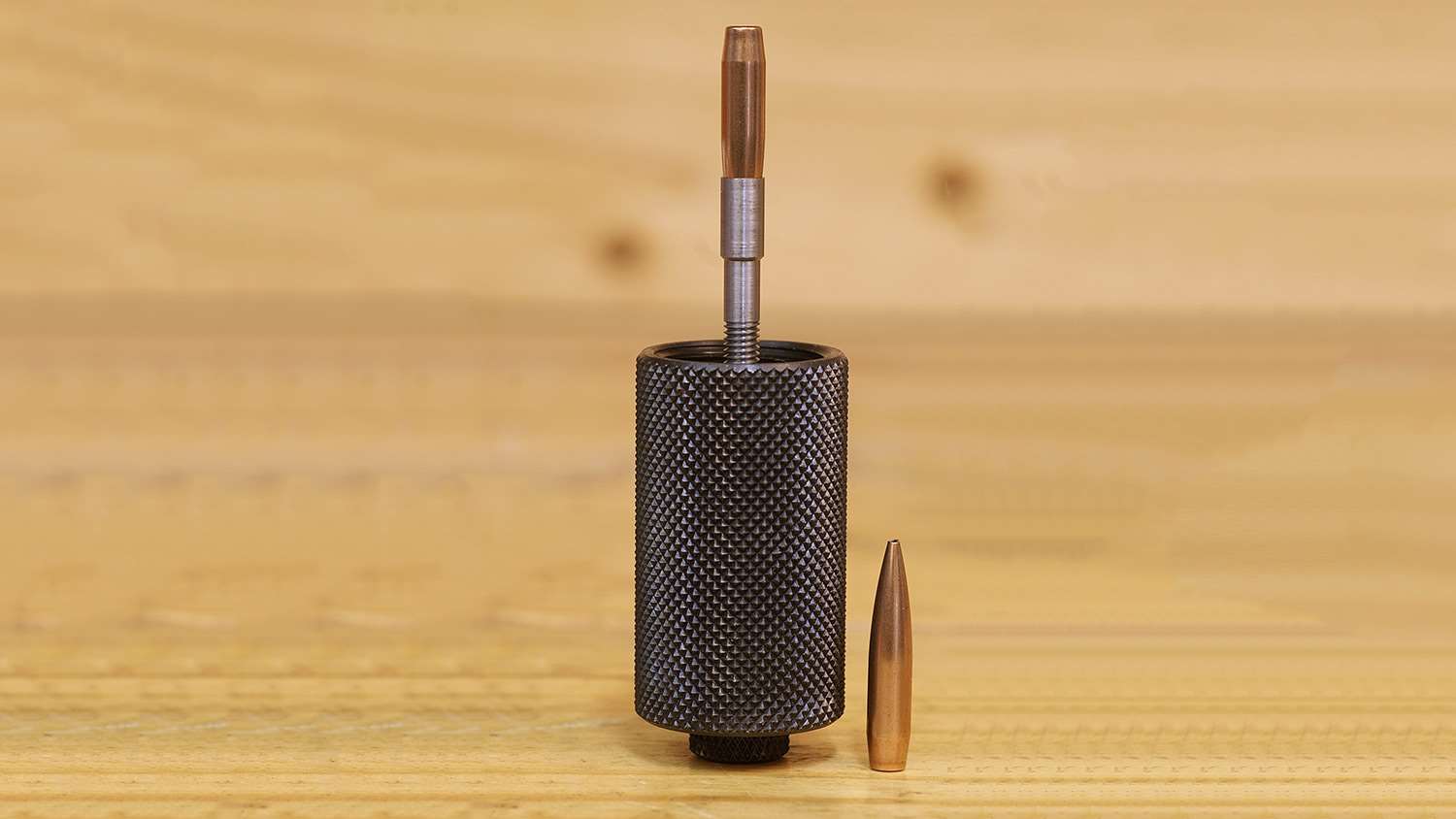

Seating stem plug
Be sure to always check to make sure the bullet is touching only on its nose cone! The bullet tip should not bottom out in the seating-stem plug.


The area inside the stem should be touching only at a point on the bullet nose cone, and the farther down the better. If not, then the bullet is free to tilt askew as it’s being seated into the case mouth. The solution: A good local machinist, or give a call to the die manufacturer (most I know have adjusted their newer tooling for the super-long bullets used now).

Relax the inside case mouth chamfer. Related to getting a bullet started straight and easy, replace an “old-standard” 45-degree inside chamfer tool with something in the 20-degree-angle range. Big difference! And there’s less jacket damage, especially with thinner-skinned match bullets.

Lyman VLD tool
A shallower chamfer angle makes it easier for the bullet to get started straight, and therefore stay straight. This is a VLD tool from Lyman.


Polish the sizing button. Even if it’s perfectly the right size, running this appliance against 600-grit oiled emery cloth, or using a paste abrasive (such as Flitz) so it gets shiny and slicked up makes a huge difference in how well it works, and that’s from lessening its ill effects (which of course after getting it centered all come from snag and grab).

O-ring tricks for reloading
O-ring trick: The flexible ring allows for some “wiggle room” to help centers match. The trick to this is reinstalling the die to hold the desired setting and index marks.


Lock ring O-rings. Here’s another trick: Install an O-ring under the die body locking ring. Do this for sizers and seaters. This allows some free movement in helping a case center as it’s entering the die because the die itself is free to flex a little.

Arkansas stone
Polishing the sizing button really helps improve its performance and eliminate its oft-touted evil influences. It might be necessary to start this process on a hard Arkansas stone if there are sharp edges.


This design has been standard equipment on Lee-brand dies for decades. And no, the die will not loosen and work its way out of whack. But, still, if you do this one, most definitely index-mark the die ring to the die body and then the ring to the press top, as suggested. That’s also how you know it’s been reinstalled on point.

The O-ring size is ⅞ inch inside diameter and a thickness of ⅛ inch.

It’s an optional means to attain improved alignment. Since I follow my own advice that is provided in this article, I don’t use the O-rings.

One last thing: Never touch the die body itself to thread in or out any die! Hold only the lock ring. That is true for any and all dies, O-rings or not. The reason is really simple: If the die body rotates even a tiny bit, guess who has to set the dang thing up again?

Photos by Glen Zediker
