Let’s skip the appetizer and get right to the meat and potatoes of a manufacturer’s claims for a new cartridge case technology to replace the 150-year reign of brass. Here’s what Shell Shock Technologies (SST) says about their two-piece, nickel-aluminum-stainless steel 9mm Luger NAS3 cases:
Taking the last two claims first, OK, it would be pretty handy to effortlessly pick up our brass with a magnet after shooting a match stage. Coloring our cases means we can instantly separate our brass from that of other competitors. Plus there’s that unquantifiable “cool factor” of nonchalantly bringing something interesting, useful and attention-getting to a match. Many pistol competitors are also handloaders, so the other claims—did I mention “40 reloadings” and “no trimming?”—are of eyebrow raising interest to us.
Convenience and coolness aside, SST NAS3 may be the most significant advance in cartridge case technology since brass replaced the paper cartridge around 1870. Yes, steel, aluminum and polymer are options for cartridge cases, but all are “throwaway” technologies. Aluminum is too soft to safely reload; the Berdan primers are there to discourage reloading. Polymer cases get the same Berdan treatment for the same safety reason. Steel cases are also universally Berdan primed and comparatively difficult to work through dies, even if you are set up for reloading with Berdan primers.
Which of SST’s claims for their new 9mm cases can we check for ourselves? And which are really important to the handloader? Let’s take ‘em by the numbers.
Stronger
Manufacturer tested at more than 65,000 psi—that’s almost 7.62 NATO proof load pressure—the NAS3 cases are incredibly strong. SAAMI standard for 9mm is 35,000 psi; 9mm +P is 38,500 psi. While we’re talking about this, let’s point out that though the NAS3 case is plenty strong, handguns are not built to take rifle cartridge pressures. The NAS3 case strength is no license for handloading foolishness.

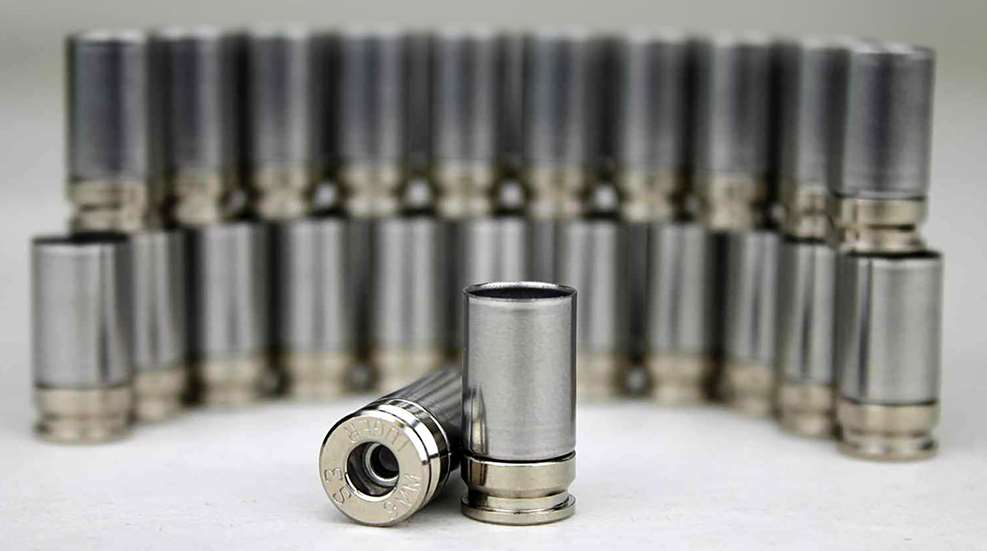

The NAS3 case is a nickel-stainless steel alloy cylinder crimped to a nickel plated aluminum case head. Stainless steel does indeed have a higher tensile strength than brass and so the case material doesn’t “flow” forward on firing and eventually need trimming, like a brass case, and it can withstand much higher chamber pressures than brass. For the handloader, however, we must redefine “stronger.” The crimped joint between the NAS3 two-piece case head and body is a weak point for handloading. Though I just called the case body a “cylinder,” perhaps “funnel” would be a more descriptive word. The base of the stainless steel cylinder has a hollow tube extension that forms the primer’s flash hole channel; the end protruding into the case head is flared and crimped to bond the two pieces together.
Upon firing any cartridge, the chamber walls and the breech face support the case; gas forces expand in all directions but of course are directed by design to drive the bullet forward. There is no force of consequence that pulls the cartridge case forward on firing, so the NAS3 case/head crimp has no firing stresses applied that would tend to pull that joint apart.
However, standard dies utilize the shellholder to pull the case out of the resizing and expanding dies; the NAS3 case requires use of special SST sizing and flaring dies that don’t stress the crimp with that pulling action. The dies accomplish this by pushing the case from the dies with a compressible synthetic rod that acts like a spring.
During testing I found that pulling bullets will also overstress that head-to-case-body crimp because inertia and press-mounted bullet pullers apply force in that forward direction, essentially pulling the head and case body in opposite directions. Pulling bullets leaves a visible gap between the case body and head, indicating the crimp is loosened and necessitating discarding cases to avoid possible case head separation upon firing or extraction.
I brought this matter up with SST spokesman Andrew Vallance. “In the near future Shell Shock will be releasing a simple attachment accessory to eliminate this issue and enable the use of NAS3 cases with inertia pullers,” he said.
Life is full of trade-offs, so while we’re on the die subject I’ll mention another caveat to accompany the special dies: even though the SST resizing die has a carbide insert, the NAS3 stainless steel 9mm cases still require lubrication (though brass cases do not).
Cheaper
MSRP for SST NAS3 cases is $60 for the first 500, 12¢ each, with price reductions for larger quantities. An online check shows new 9mm brass cases run from 14¢ to 17¢. Price advantage: NAS3.
Lighter
Yep. An average of 10 NAS3 cases weighed in at 29.7-grains each, compared to a mixed batch of 10 brass cases at 58.8-grains—almost exactly half the weight of brass.
Resist corrosion
My informal method comparing corrosion resistance to that of brass was to leave a couple cases in a saltwater solution for two weeks, expose them to the outside air for another two weeks, then compare them to similarly treated brass. The NAS3 nickel-stainless steel case body survived just fine, but its nickel plated aluminum case head corroded as much or more so than brass. A claim refutation, it appears, but let’s have a reality check: the test result satisfies curiosity but means nothing in the real world unless you store your cases in a saltwater solution.
More volume
SST claims two percent more case volume over brass due to the squared bottoms at the case head versus brass having rounded inside corners. The common method of measuring volume is to weigh an empty case, then fill it with water and weigh it again. Scales only promise a +/- .1-grain accuracy, so checking 9mm case volume would be inconclusive unless you measured about 100 NAS3 cases and then 100 brass cases from each of several manufacturers (after trimming all to the same length)—say, 400 cases total—and compared the results. Feel free, I’ve got a life to attend to. I’ll concede this one to the manufacturer.
Consistent ignition
This derives from beveling the flash hole from inside the case, a well-recognized accurizing trick used in precision shooting like NRA Long-Range and High Power competition. SST also enlarges the flash hole, not for shot-to-shot consistency, but helpful for reliable ignition when reloading with lead-free primers for indoor shooting. The enlarged flash hole is possibly desirable from a manufacturing standpoint, an aid perhaps in crimping the body-to-case-head joint.
We can infer consistent ignition from chronograph extreme spread/standard deviation (though other factors are also at work), but independent testing by munitions specialist H.P. White Laboratory has already done this work for us, finding fantastically low standard deviations of 0.093 fps and extreme spreads of only 3 fps with 124-grain FMJ bullets and 4.2-grain of Titegroup.
+P velocity without +P pressure
Without access to a pressure measuring facility, we can’t verify this with absolute confidence. However, we might make an inference that would also infer some veracity for the two percent volume claim above. We can load NAS3 and brass cases identically and fire them; Boyles Law says that the NAS3’s greater volume will result in lower pressure compared to brass cases, which should result in lower velocity, and velocity we can measure with a chronograph.
No trimming, 40 reloads
The last two claims regarding case stretching and 40 reloads are simple to check; though tedious and time consuming, they’re worth the effort. For the sake of alacrity in presenting you the SST case here and now, allow me some time (and pleasant weather) to attend the range with calipers and loading press to see whether we can get those 40 reloadings from a single case. Stay tuned for a report with reloading and chronograph results in the not-too-distant future. For now, let’s summarize the pros and cons of SST’s cases for the handloader.
Pros
So, let’s load up and find whatever wrinkles might need ironing …
The 9mm Luger is SST’s debut case—and more calibers, including bottleneck rifle cases, are in the works. You can learn more about SST at www.shellshocktech.com.
Photos by Art Merrill.
- Stronger, cheaper and half the weight of brass.
- Greater corrosion resistance.
- More internal volume.
- More consistent ignition.
- +P velocities without +P pressures.
- Cases won’t stretch, no trimming required.
- Withstands 40 or more reloadings.
- Picks up with a magnet.
- Can be anodized different colors for instant ID.
The NAS3 requires unique flaring and sizing dies (left to right) that use a synthetic rod “spring” to push cases, rather than pull them, from the dies.
Convenience and coolness aside, SST NAS3 may be the most significant advance in cartridge case technology since brass replaced the paper cartridge around 1870. Yes, steel, aluminum and polymer are options for cartridge cases, but all are “throwaway” technologies. Aluminum is too soft to safely reload; the Berdan primers are there to discourage reloading. Polymer cases get the same Berdan treatment for the same safety reason. Steel cases are also universally Berdan primed and comparatively difficult to work through dies, even if you are set up for reloading with Berdan primers.
Which of SST’s claims for their new 9mm cases can we check for ourselves? And which are really important to the handloader? Let’s take ‘em by the numbers.
Stronger
Manufacturer tested at more than 65,000 psi—that’s almost 7.62 NATO proof load pressure—the NAS3 cases are incredibly strong. SAAMI standard for 9mm is 35,000 psi; 9mm +P is 38,500 psi. While we’re talking about this, let’s point out that though the NAS3 case is plenty strong, handguns are not built to take rifle cartridge pressures. The NAS3 case strength is no license for handloading foolishness.
NAS3 case heads can be color anodized.
Upon firing any cartridge, the chamber walls and the breech face support the case; gas forces expand in all directions but of course are directed by design to drive the bullet forward. There is no force of consequence that pulls the cartridge case forward on firing, so the NAS3 case/head crimp has no firing stresses applied that would tend to pull that joint apart.
However, standard dies utilize the shellholder to pull the case out of the resizing and expanding dies; the NAS3 case requires use of special SST sizing and flaring dies that don’t stress the crimp with that pulling action. The dies accomplish this by pushing the case from the dies with a compressible synthetic rod that acts like a spring.
During testing I found that pulling bullets will also overstress that head-to-case-body crimp because inertia and press-mounted bullet pullers apply force in that forward direction, essentially pulling the head and case body in opposite directions. Pulling bullets leaves a visible gap between the case body and head, indicating the crimp is loosened and necessitating discarding cases to avoid possible case head separation upon firing or extraction.
I brought this matter up with SST spokesman Andrew Vallance. “In the near future Shell Shock will be releasing a simple attachment accessory to eliminate this issue and enable the use of NAS3 cases with inertia pullers,” he said.
Life is full of trade-offs, so while we’re on the die subject I’ll mention another caveat to accompany the special dies: even though the SST resizing die has a carbide insert, the NAS3 stainless steel 9mm cases still require lubrication (though brass cases do not).
Cheaper
MSRP for SST NAS3 cases is $60 for the first 500, 12¢ each, with price reductions for larger quantities. An online check shows new 9mm brass cases run from 14¢ to 17¢. Price advantage: NAS3.
Lighter
Yep. An average of 10 NAS3 cases weighed in at 29.7-grains each, compared to a mixed batch of 10 brass cases at 58.8-grains—almost exactly half the weight of brass.
Resist corrosion
The stainless steel portion of the SST case is corrosion-resistant.
More volume
SST claims two percent more case volume over brass due to the squared bottoms at the case head versus brass having rounded inside corners. The common method of measuring volume is to weigh an empty case, then fill it with water and weigh it again. Scales only promise a +/- .1-grain accuracy, so checking 9mm case volume would be inconclusive unless you measured about 100 NAS3 cases and then 100 brass cases from each of several manufacturers (after trimming all to the same length)—say, 400 cases total—and compared the results. Feel free, I’ve got a life to attend to. I’ll concede this one to the manufacturer.
Consistent ignition
An extension from the steel case body crimps into the nickel alloy case head to also form the primer flash hole.
We can infer consistent ignition from chronograph extreme spread/standard deviation (though other factors are also at work), but independent testing by munitions specialist H.P. White Laboratory has already done this work for us, finding fantastically low standard deviations of 0.093 fps and extreme spreads of only 3 fps with 124-grain FMJ bullets and 4.2-grain of Titegroup.
+P velocity without +P pressure
Without access to a pressure measuring facility, we can’t verify this with absolute confidence. However, we might make an inference that would also infer some veracity for the two percent volume claim above. We can load NAS3 and brass cases identically and fire them; Boyles Law says that the NAS3’s greater volume will result in lower pressure compared to brass cases, which should result in lower velocity, and velocity we can measure with a chronograph.
No trimming, 40 reloads
Pulling bullets overstresses the crimp, making cases unreloadable.
Pros
- No case stretching—hence no trimming is necessary.
- Flash hole beveling—an aid to uniform powder ignition and hence accuracy—is factory applied.
- Flash hole is enlarged for “lead-free” primers. While not widely available to handloaders yet (only Fiocchi Zero Pollution small pistol primers come to mind), we can expect more in the future.
- Lower initial cost than brass, plus reloading each case five or 10 times more than brass cases is a significant saving.
- Color coding bases for instant load ID.
- Handloaders can get +P velocities without +P pressures. L-Tech Enterprises loads its 124-grain Full-Stop bullet in the SST case at nearly 1,200 fps and reports pressure below 38,500 psi.
- Half the weight lightens our range bags, and we can sweep up fired cases with a magnet. Plus there’s the simple “cool factor” of unique-looking ammo, especially with color anodized case heads.
- Resizing cases requires lubrication. Adding this step back into the handloading process negates one of the joys of clean, rapid reloading on the progressive press with carbide dies.
- Pulling bullets necessitates throwing away the weakened cases.
- Proprietary dies are required. Though any bullet seating die will work, the unique sizing and flaring dies are available only from SST, MSRP $99.99 for the pair.
- New technology. As with anything new, there will be some wrinkles to iron out, sure to be discovered by a base of handloaders and shooters actually employing the technology over time.
So, let’s load up and find whatever wrinkles might need ironing …
The 9mm Luger is SST’s debut case—and more calibers, including bottleneck rifle cases, are in the works. You can learn more about SST at www.shellshocktech.com.
Photos by Art Merrill.
